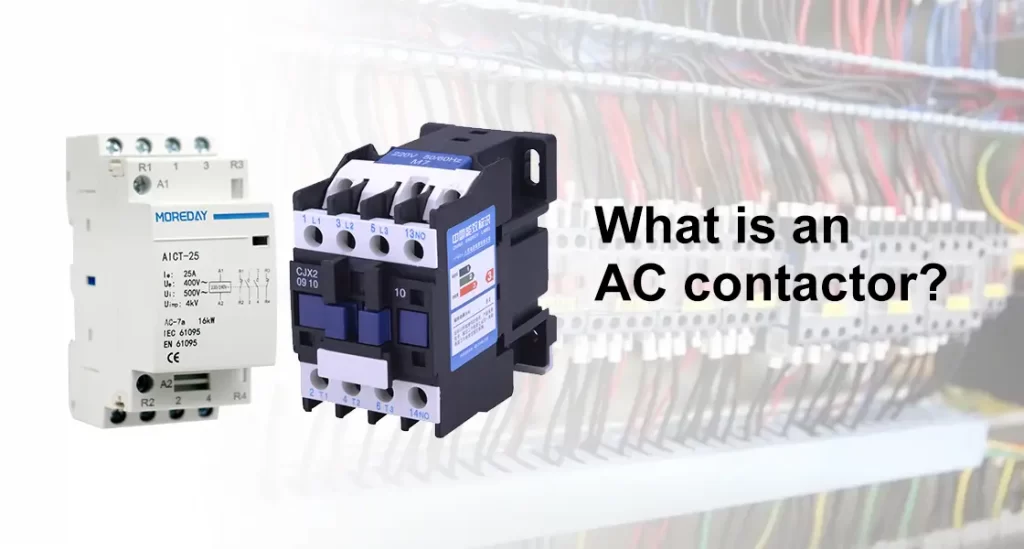

What is an AC contactor?

An AC contactor is an essential component of an air conditioning system that plays a crucial role in controlling the flow of electricity. It acts as an electrical switch, allowing the connection or disconnection of power to various components of the HVAC unit. AC contactors come in different types, including magnetic and electric contactors, each designed for specific applications.

In simple terms, an AC contactor is like a gatekeeper that regulates the power supply to the compressor and other important parts of the air conditioning system. When the thermostat signals a need for cooling or heating, the contactor closes, creating an electrical circuit and allowing the AC unit to start. Conversely, when the thermostat stops calling for action, the contactor opens, cutting off power to the AC.

Signs of a faulty AC contactor include chattering, humming, or even melting of the plastic casing. These issues indicate problems such as dirty contacts, weak coils, or complete breakdown. While minor repairs can be done, it is often more cost-effective to replace the contactor entirely.

Regular maintenance and checking of the AC contactor are crucial to ensure its proper functioning. It is recommended to have the contactor inspected during routine HVAC maintenance, especially before the start of the cooling season. If you have the technical know-how, you can replace the contactor yourself, but it’s important to follow safety precautions and ensure compatibility with the original component.

In conclusion, understanding the role and importance of an AC contactor in your air conditioning system is vital for maintaining its efficiency and longevity. By being aware of the signs of a faulty contactor and knowing when to repair or replace it, you can ensure the smooth operation of your HVAC unit and avoid costly breakdowns.


How does AC contactors work?

An AC contactor is an essential component of an air conditioning unit that controls the flow of electricity to various parts of the system. It acts as a switch, allowing or preventing power from reaching the condenser, compressor, and other components.

When the thermostat detects the need for cooling or heating, it sends a signal to the contactor. The contactor, which contains a coil, is energized by a 24-volt current. This energization creates a magnetic force that pulls down a plunger or button, closing the contactor’s electrical circuit.

Once the contactor is closed, power can flow through it to the motor and compressor, allowing the air conditioning unit to start. The contactor remains closed as long as the thermostat continues to call for cooling or heating.

When the thermostat stops calling for action, the contactor opens, breaking the electrical circuit and stopping the power supply to the AC unit. This prevents the system from running unnecessarily.

It is important to note that an AC contactor can develop faults over time. Dirty contacts, weak coils, or complete burnout can cause the contactor to malfunction. In such cases, it is advisable to replace the contactor rather than attempting repairs.

Overall, the AC contactor plays a crucial role in the proper functioning of an air conditioning unit. By understanding its operation and being aware of the signs of a faulty contactor, homeowners can ensure their AC systems are running smoothly and efficiently.

Signs of a faulty AC contactor

When it comes to your AC unit, a faulty contactor can cause a range of issues. Here are some signs that your AC contactor may be faulty:

Chattering: If you hear a chattering sound coming from your AC unit, it could be a sign that the contacts in the contactor are dirty or the coil has become weak. This can prevent the contactor from making a proper connection and engaging.

Humming: If your AC unit makes a humming sound when you turn it on but doesn’t power on, it could indicate a faulty contactor. The humming sound is caused by the coil, but the contactor may not be making a proper connection. Manually pushing the contactor button may temporarily resolve the issue.

Melting: In extreme cases, you may notice that the plastic casing or molding on the contactor has melted. This is a clear indication that the contactor needs to be replaced immediately.

ac connector application

If you are experiencing any of these signs, it’s important to address the issue promptly. Ignoring a faulty contactor can lead to further damage to your AC unit and potentially costly repairs. It’s always recommended to consult with a professional HVAC technician to diagnose and replace the faulty contactor.

Remember, maintaining your AC unit and addressing any issues promptly can help prolong its lifespan and ensure optimal performance.

Repairing or replacing an AC contactor

When it comes to dealing with a faulty AC contactor, it’s important to assess the extent of the damage before deciding whether to repair or replace it. In some cases, minor issues such as dirty contacts can be resolved through cleaning with contact cleaner. However, if the contacts are severely corroded or charred, it is generally more efficient to replace the contactor entirely.

Similarly, if the coils in the contactor are weak or damaged, they cannot be repaired and should be replaced. While replacing just the coils is possible, it can be a tedious task that involves dismantling the contactor. Therefore, it is often more practical to replace the entire contactor, especially since residential unit contactors are relatively inexpensive.

In cases where the contactor has completely burned out or experienced a breakdown, there is no option for repair and replacement is the only solution. It’s important to ensure that the replacement contactor matches the specifications of the original component to ensure proper functioning.

To replace the contactor, start by switching off the power to the AC unit. Disconnect the wires from the old contactor and remove the feet by unscrewing them. Then, attach the feet to the new contactor and reconnect the wires. It’s crucial to exercise caution and ensure proper installation to avoid any electrical hazards.

If you are unsure about your ability to replace the contactor correctly, it is advisable to seek the assistance of a professional HVAC technician. Remember, the safety and proper functioning of your AC unit should always be the top priority.

How often should an AC contactor be checked?

Regular maintenance of an air conditioning unit is essential to ensure its optimal performance and longevity. As part of this maintenance routine, it is recommended to check the AC contactor. The frequency of these checks may vary depending on factors such as the age of the unit, the climate conditions, and the manufacturer’s recommendations.

In general, it is advisable to have the AC contactor checked at least once a year, preferably before the start of the cooling season. This allows any potential issues or wear and tear to be identified and addressed before they escalate into major problems.

During the inspection, a professional HVAC technician will examine the contactor for signs of damage, corrosion, or worn-out components. They will also ensure that the contactor is properly connected and functioning as it should. If any issues are detected, the technician will recommend the appropriate course of action, which may involve repair or replacement of the contactor.

How does ac connector connect devices

By regularly checking the AC contactor, you can prevent unexpected breakdowns, improve energy efficiency, and extend the lifespan of your air conditioning unit. It is important to note that attempting to inspect or repair the contactor yourself can be dangerous and should be left to trained professionals.

In conclusion, scheduling regular checks of the AC contactor is a crucial part of maintaining the overall health and performance of your air conditioning system. By staying proactive and addressing any issues promptly, you can ensure a comfortable and reliable cooling experience throughout the year.

Retrofitting an AC Contactor to an Older Unit

If you have an older air conditioning unit and are considering retrofitting an AC contactor, it is important to proceed with caution. Retrofitting an AC contactor requires expertise and should only be done by a professional HVAC technician to ensure proper installation and function.

Retrofitting involves replacing the existing contactor with a new one that is compatible with the older unit. This process may require modifications to the electrical wiring and connections, as well as adjustments to the control board or other components.

Before proceeding with the retrofit, the technician will assess the compatibility of the new contactor with the older unit. They will consider factors such as voltage requirements, load capacity, and control circuit compatibility. It is crucial to choose a contactor that matches the specifications of the original component to ensure proper operation and avoid damage to the unit.

Once the compatible contactor is selected, the technician will carefully disconnect the old contactor and install the new one. They will ensure that all electrical connections are secure and properly insulated to prevent any hazards or malfunctions.

Retrofitting an AC contactor to an older unit can improve its performance and extend its lifespan. It allows for more efficient control of the electrical power flow, ensuring that the unit operates smoothly and effectively.

Remember, attempting to retrofit an AC contactor yourself can be risky and may lead to further damage or safety hazards. It is always best to consult a professional HVAC technician who has the knowledge and experience to handle the retrofitting process safely and effectively.

Overhaul ac connector

Lifespan of an AC contactor

The lifespan of an AC contactor can vary depending on various factors such as the manufacturer and the amount of use. On average, an AC contactor can last anywhere from 10 to 15 years. However, it is important to note that this is just an estimate, and the actual lifespan can differ.

The longevity of an AC contactor is also influenced by the conditions it operates in. Factors such as temperature, humidity, and dust can affect its performance and lifespan. For example, contactors in regions with consistently high temperatures or dusty environments may experience more wear and tear, leading to a shorter lifespan.

Regular maintenance and inspections can help prolong the lifespan of an AC contactor. It is recommended to have the contactor checked during routine maintenance of the air conditioning unit, typically before the start of the cooling season. This allows any potential issues to be identified and addressed early on, preventing further damage and extending the contactor’s lifespan.

If a contactor is significantly damaged or worn out, it is generally more effective and efficient to replace it rather than attempting to repair it. Replacing the contactor with a new one that matches the specifications of the original component ensures optimal performance and reliability.

In conclusion, while the average lifespan of an AC contactor is around 10 to 15 years, various factors can influence its longevity. Regular maintenance and timely replacement can help ensure the contactor operates effectively and extends its lifespan.

What to do if your AC contactor is faulty

If you suspect that your AC contactor is faulty, it is important to take the appropriate steps to address the issue. Here are some recommended actions to take:

Safety first: Before attempting any repairs or replacements, ensure that the power supply to the AC unit is switched off. This will prevent any accidents or electrical shocks.

Diagnose the problem: If your AC unit is not turning on or if it is repeatedly turning on and off, it may be a sign of a faulty contactor. However, it is best to consult with a professional HVAC technician to accurately diagnose the issue.

Consider replacement: In most cases, it is more cost-effective and efficient to replace the faulty contactor rather than attempting repairs. Contactors are readily available and relatively inexpensive.

Match specifications: When replacing the contactor, ensure that you choose one that matches the specifications of the original component. This includes the coil voltage, number of poles, and amp rating.

Professional installation: If you are confident in your abilities, you can replace the contactor yourself using a flathead screwdriver. However, if you are unsure, it is best to leave the job to a qualified AC technician to ensure proper installation and functionality.

Remember, working with electrical components can be dangerous, so it is always recommended to seek professional assistance if you are unsure or uncomfortable with the task. By following these steps, you can effectively address a faulty AC contactor and restore the functionality of your AC unit.
